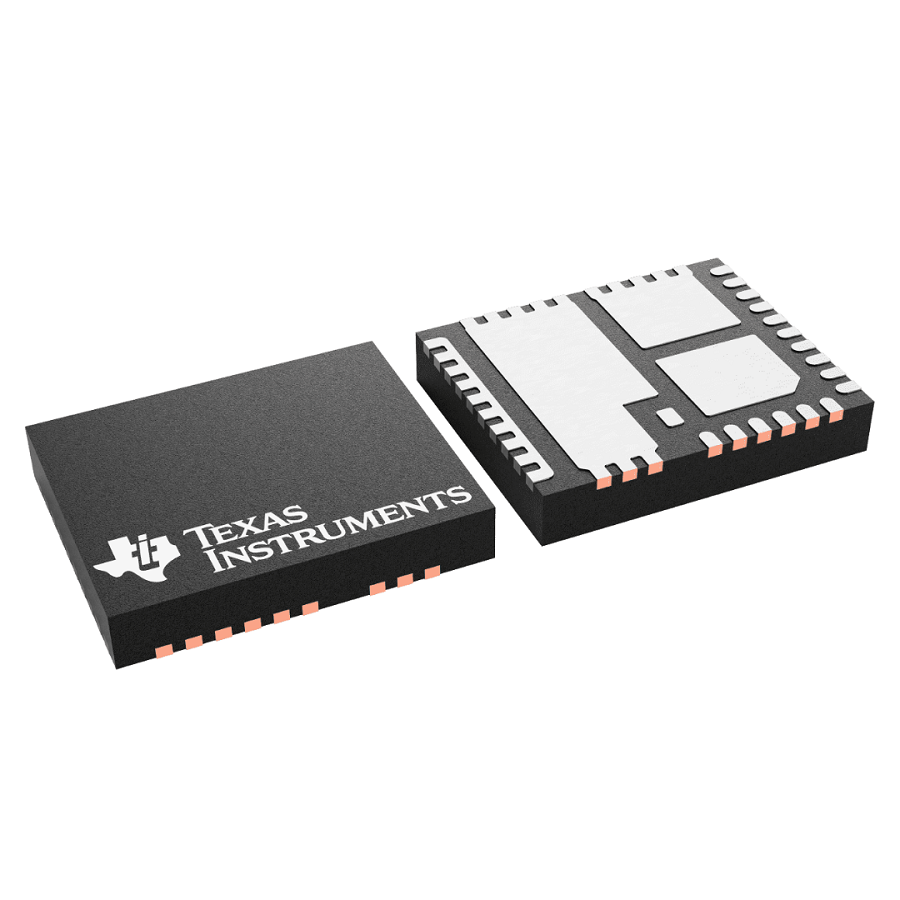

CSD95480RWJ
Manufacturer:
Texas Instruments
Mfr.Part #:
CSD95480RWJ
Datasheet:
Description:
Voltage Regulators - Switching VQFN-41 SMD/SMT Buck 5.5 V
| Parameter | Value |
|---|---|
| Length | 6 mm |
| Width | 5 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 41 |
| Height | 1.05 mm |
| Packaging | Reel |
| Thickness | 1 mm |
| RoHS | Compliant |
| Min Input Voltage | 4.5 V |
| Output Current | 70 A |
| Output Voltage | 5.5 V |
| Max Supply Voltage | 16 V |
| Min Supply Voltage | 4.5 V |
| Topology | Buck |
| Switching Frequency | 1.25 MHz |
| Max Input Voltage | 16 V |
| Number of Outputs | 1 |
| Max Junction Temperature (Tj) | 125 °C |
| Schedule B | 8542390000 |
Stock: 6
Distributors
pcbx
pcbxUnit Price$0.96403
Ext.Price$0.96403
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.96403 | $0.96403 |
| 10 | $0.79123 | $7.91230 |
| 25 | $0.72045 | $18.01125 |
| 50 | $0.65600 | $32.80000 |
| 100 | $0.59733 | $59.73300 |
| 300 | $0.57231 | $171.69300 |
| 500 | $0.54834 | $274.17000 |
| 1000 | $0.52690 | $526.90000 |
